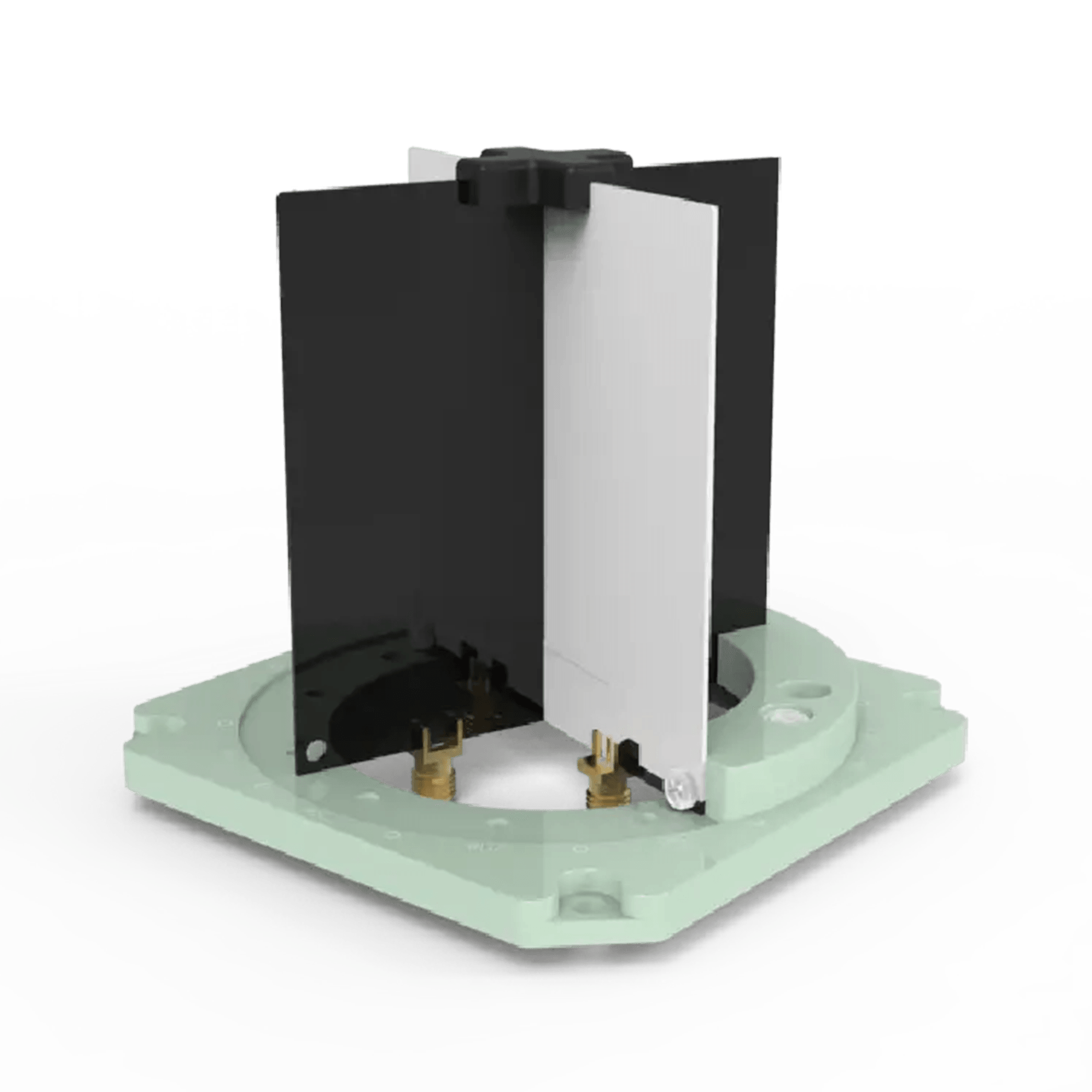

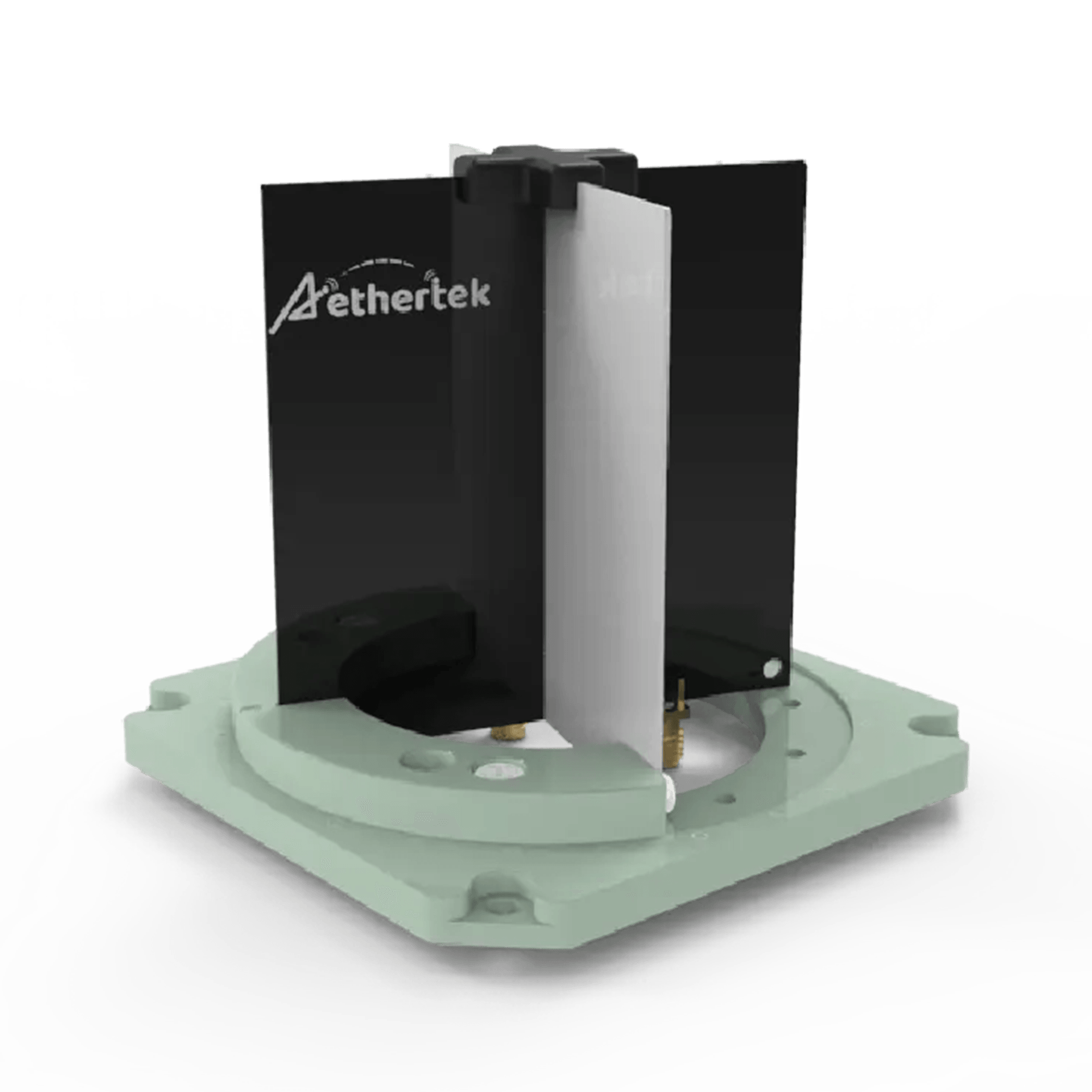

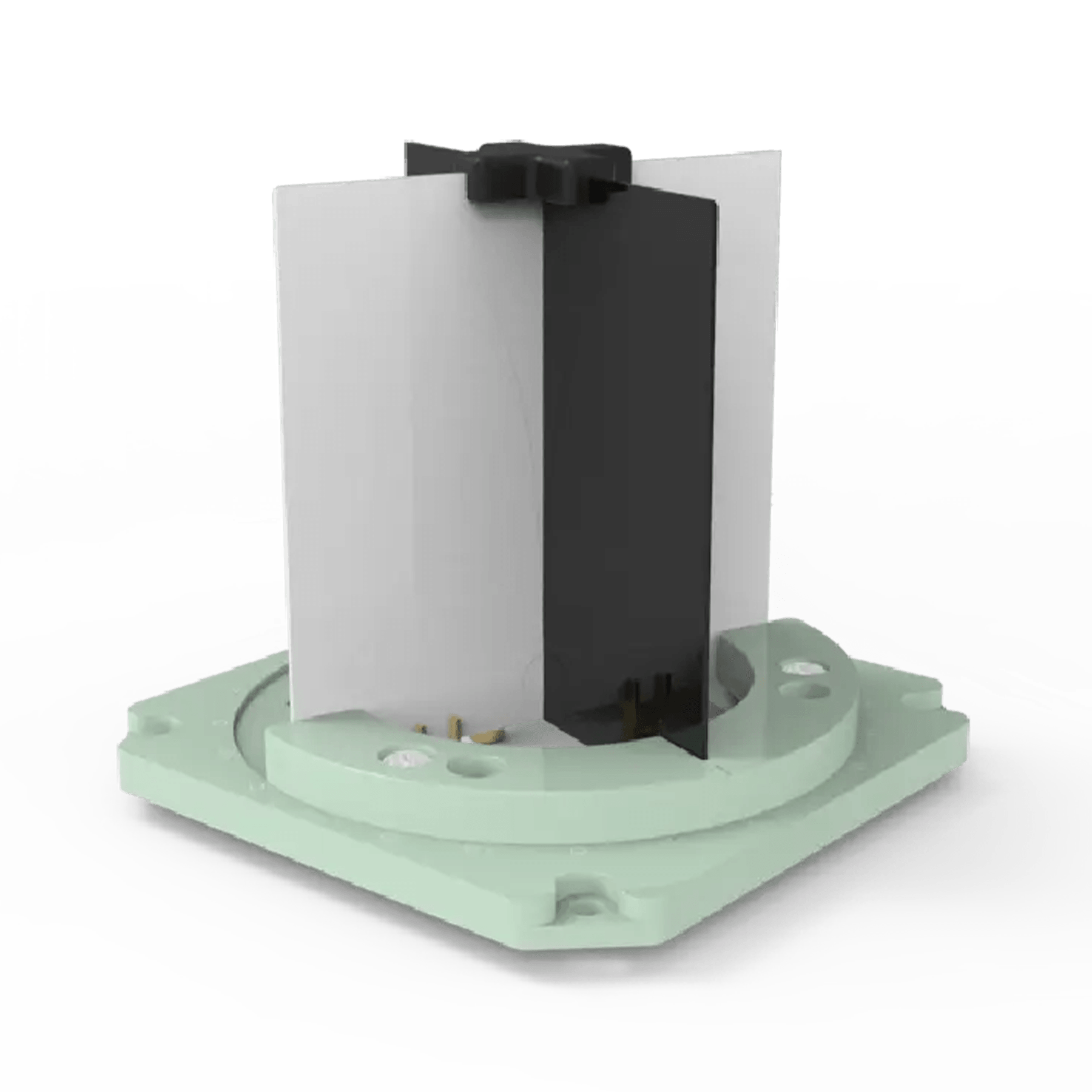

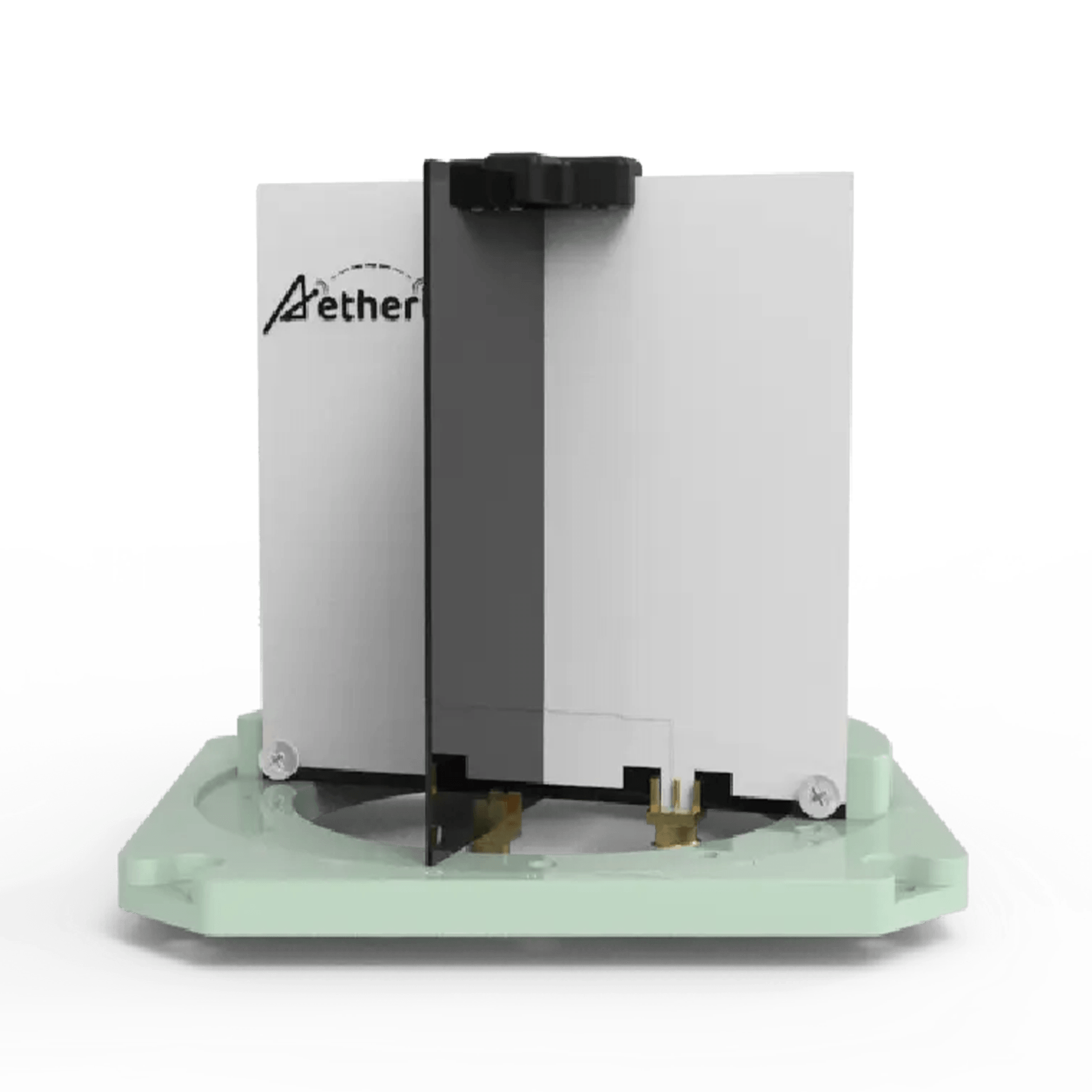

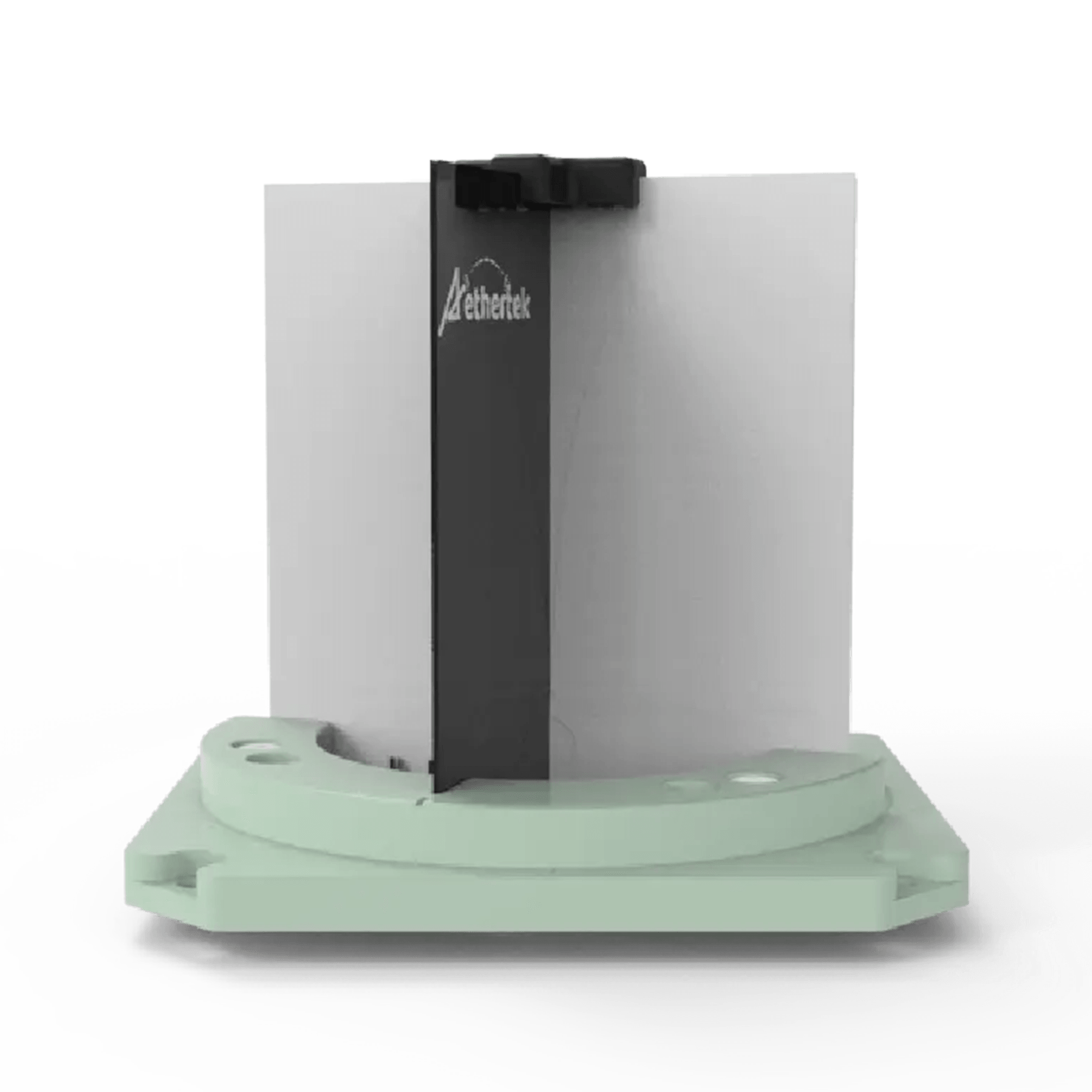

Passive AntennasVivaldi Antenna
DPV-A
DPV Antenna is designed for receiver sensitivity testing, transmitter radiated power testing, and over-the-air testing for 5G FR1, WLAN, PDA, Bluetooth, LTE, and GNSS.
It covers a wide bandwidth frequency from 0.7GHz~12GHz, and is suitable for testing inside a shielding space.
Overview
Frequency Range
0.7GHz~12GHz
Dimensions (mm)
(L)100 × (W)120, thickness=0.8
VSWR
3:1
RF Connector
SMA-F
Antenna Type
DPVA (Dual Polarized Vivaldi Antenna)
No.1
Operation frequency from 700MHz to 12GHz
No.2
Support 2G, 3G, 4G network device
No.3
Support GPS, Bluetooth, Wifi, LTE network device test
No.4
Compact size for small- medium sized shielding box
Download Data Sheet
