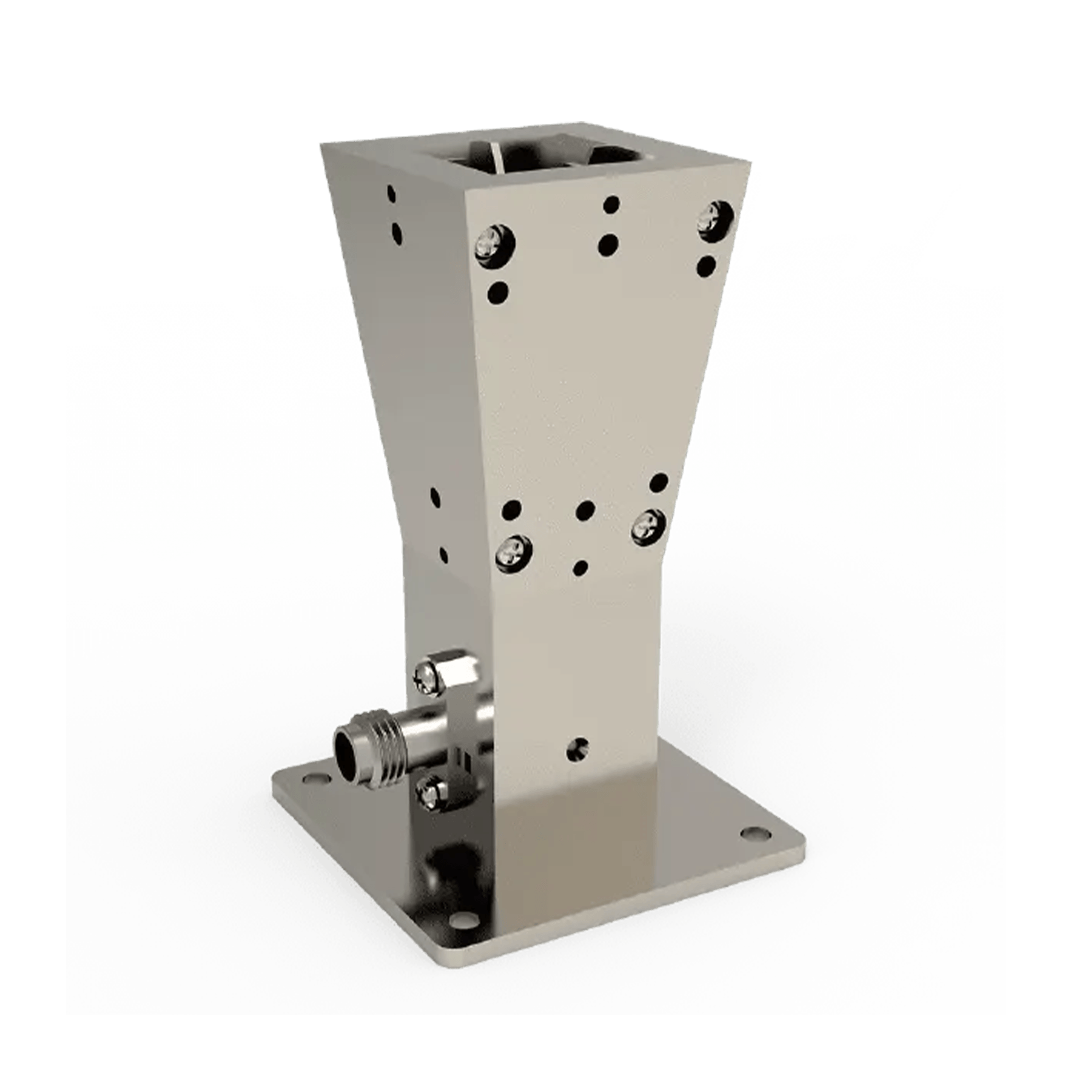

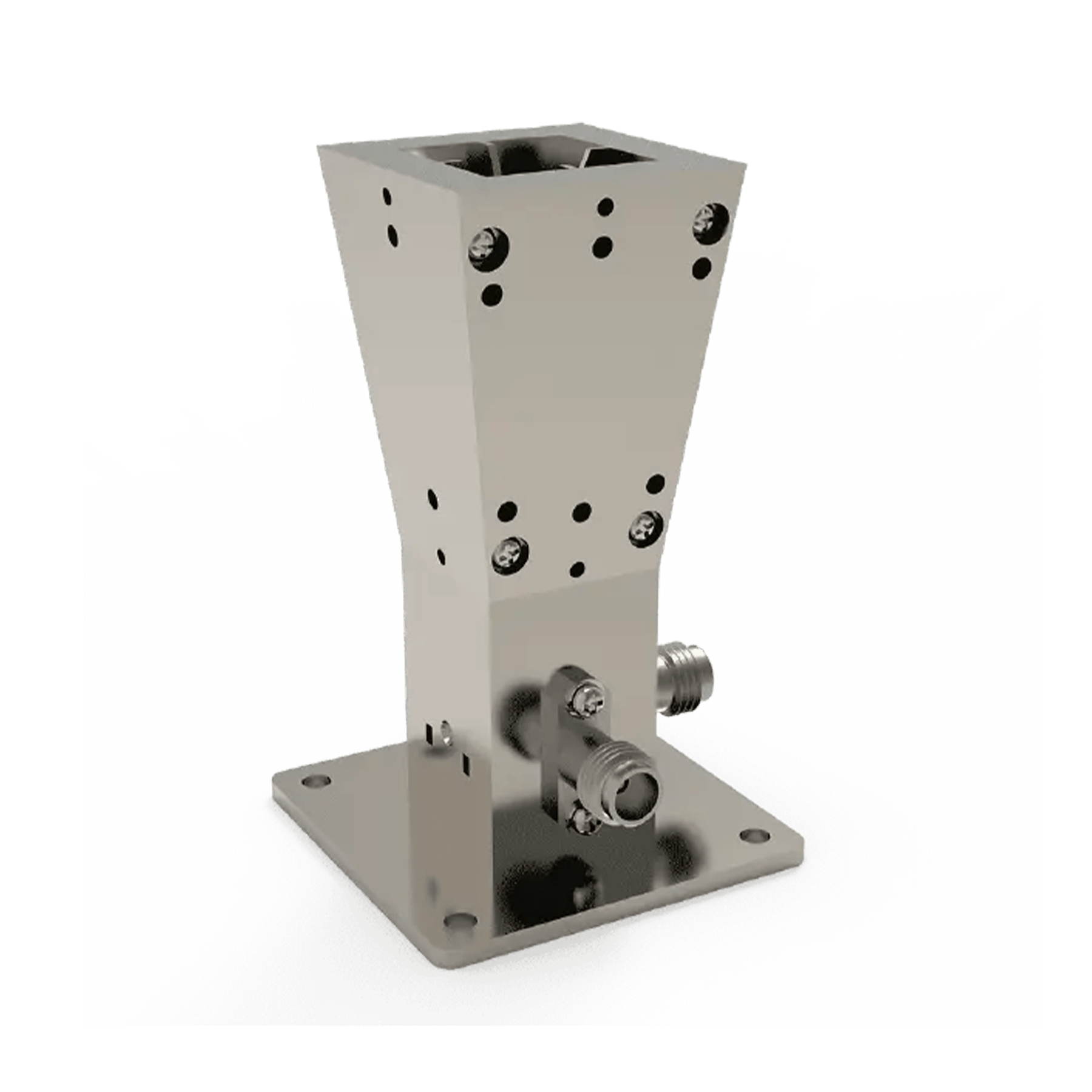

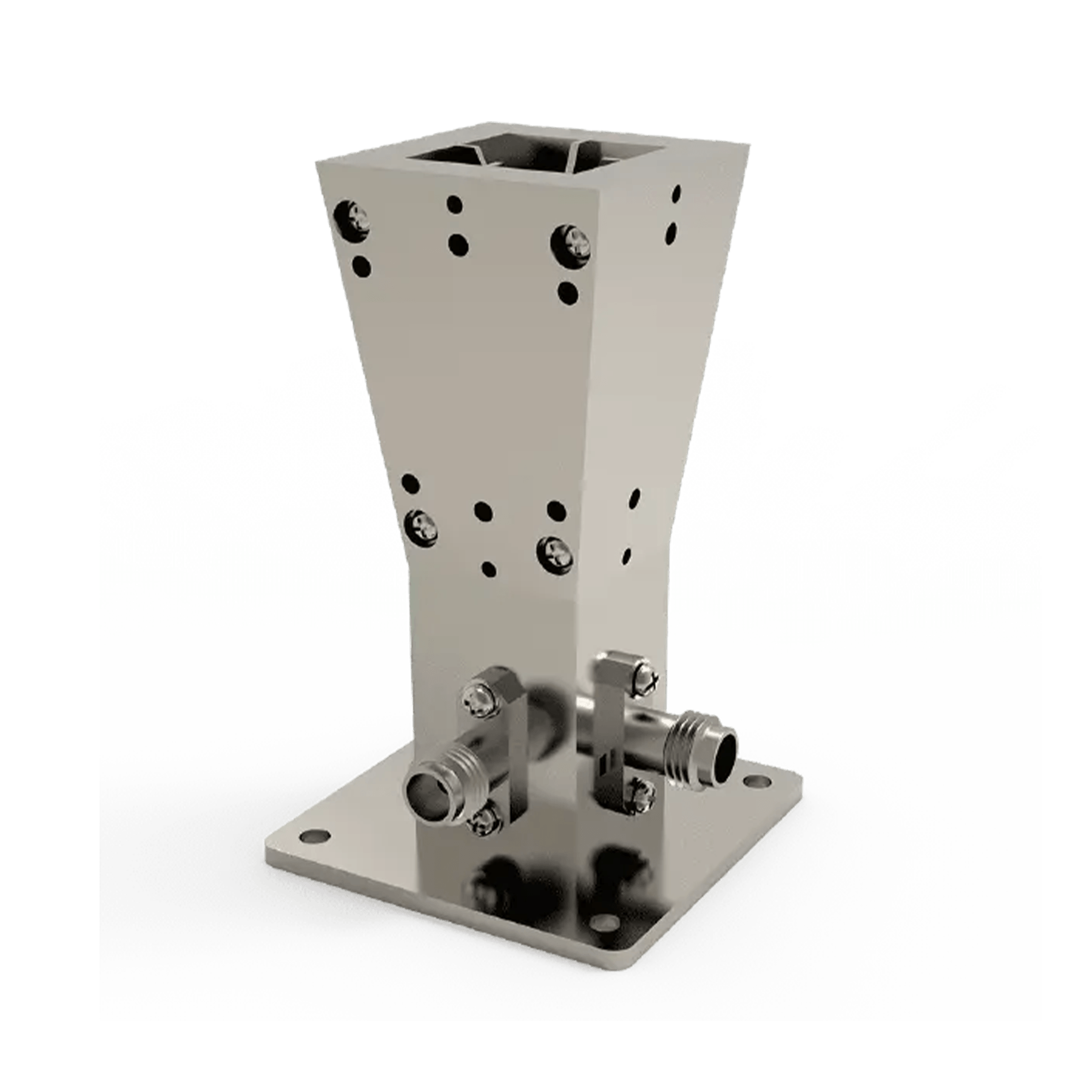

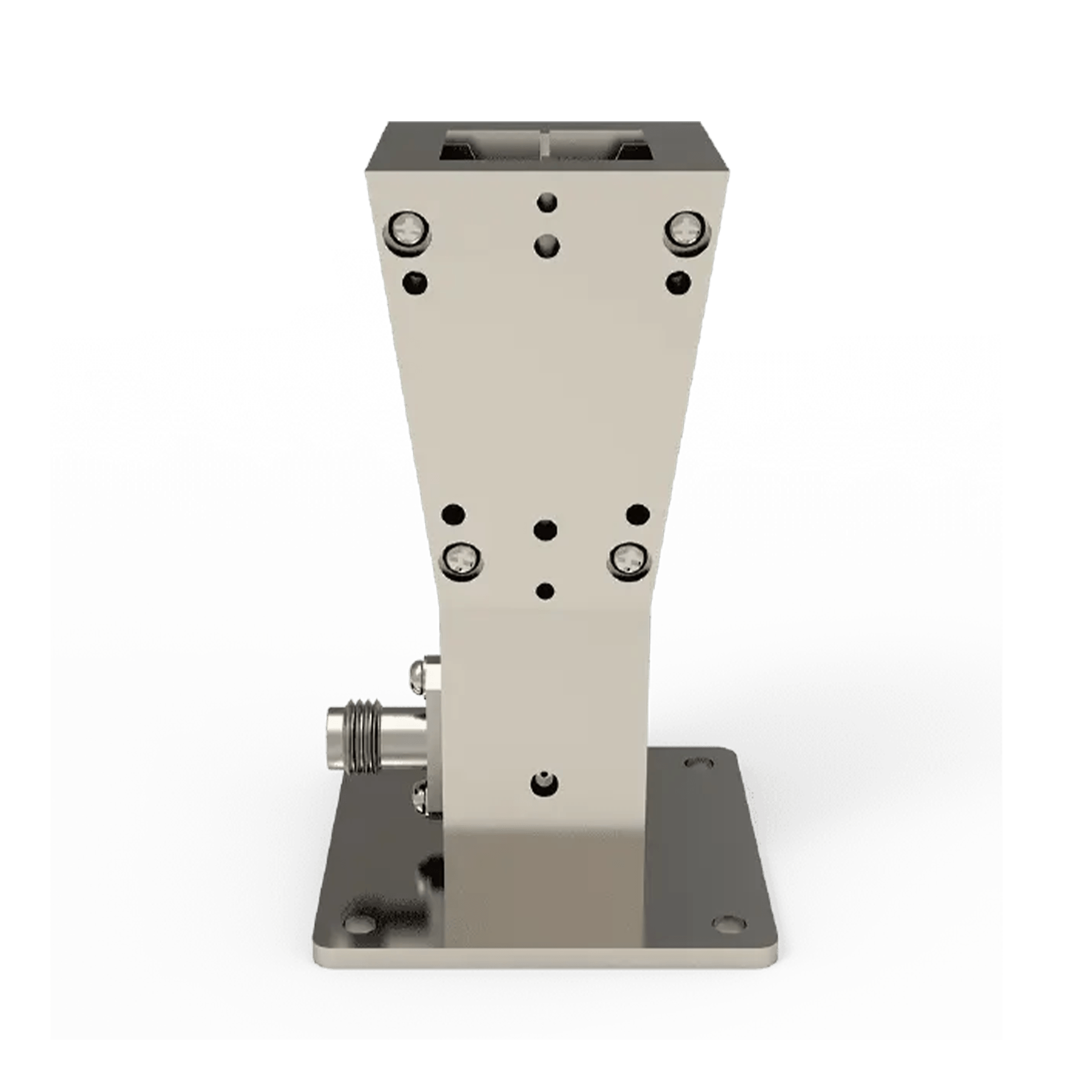

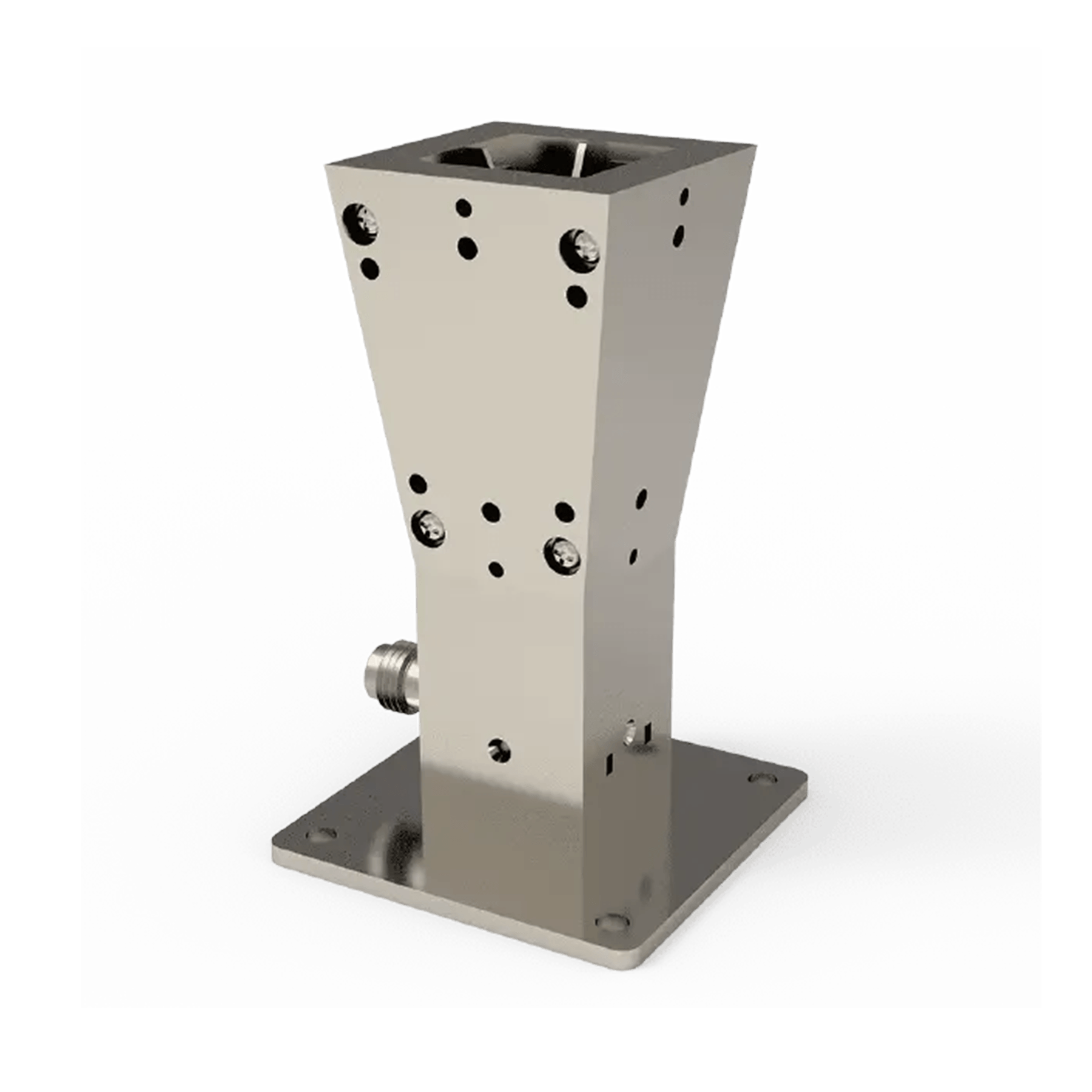

Horn Antenna C
Model C is a dual-pol broadband Horn Antenna with frequency range from 24.25 GHz~ 43.5GHz. It is suitable for 5G mmWave test.
Overview
Frequency Range
24.25~43.5 GHz
Dimensions (mm)
40×40×66
VSWR
<2
RF Connector
2.92 mm
No.1
Operation frequency from 24.25GHz to 43.5GHz
No.2
2.92mm Female RF interface
