Shield BoxConductive
CON-S-270

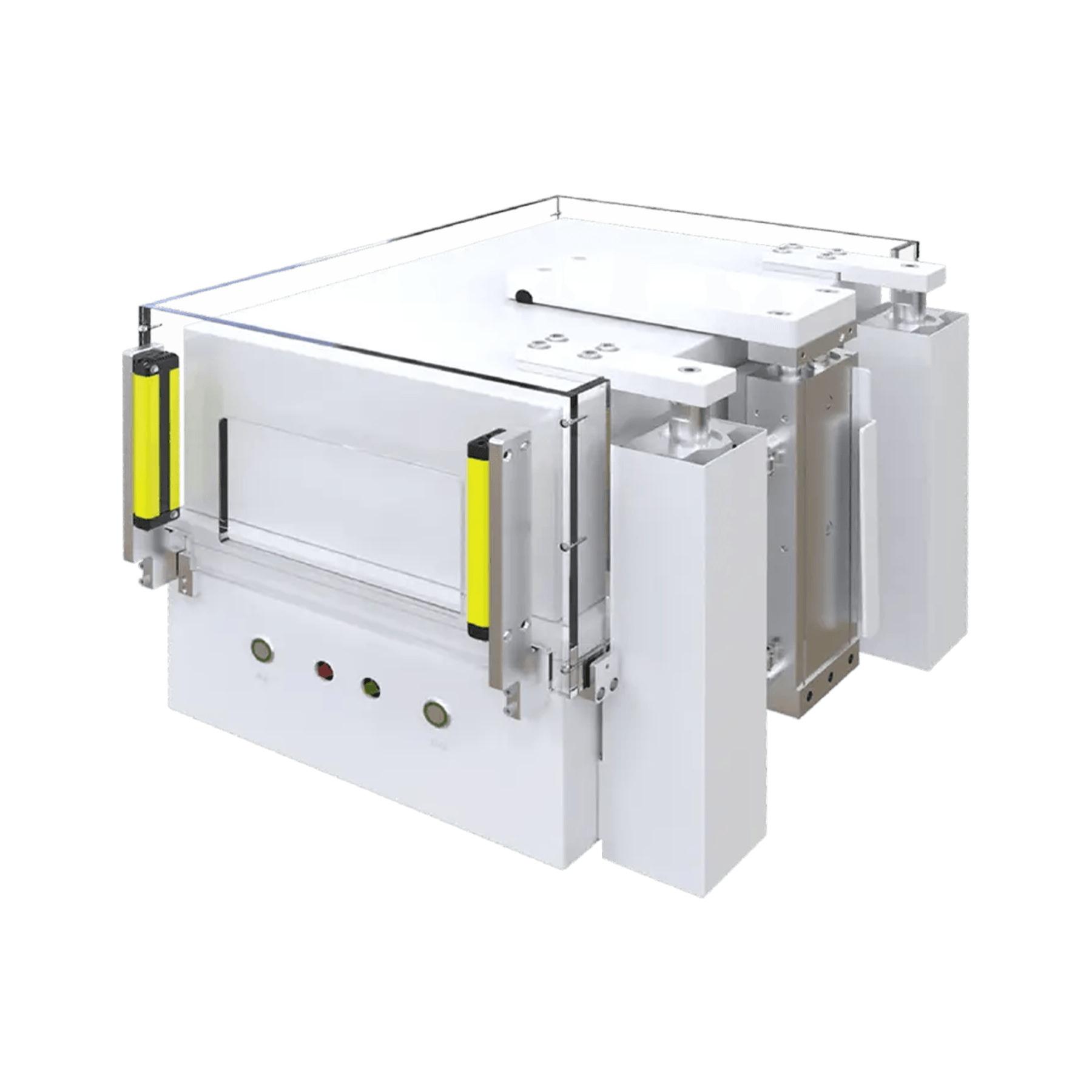

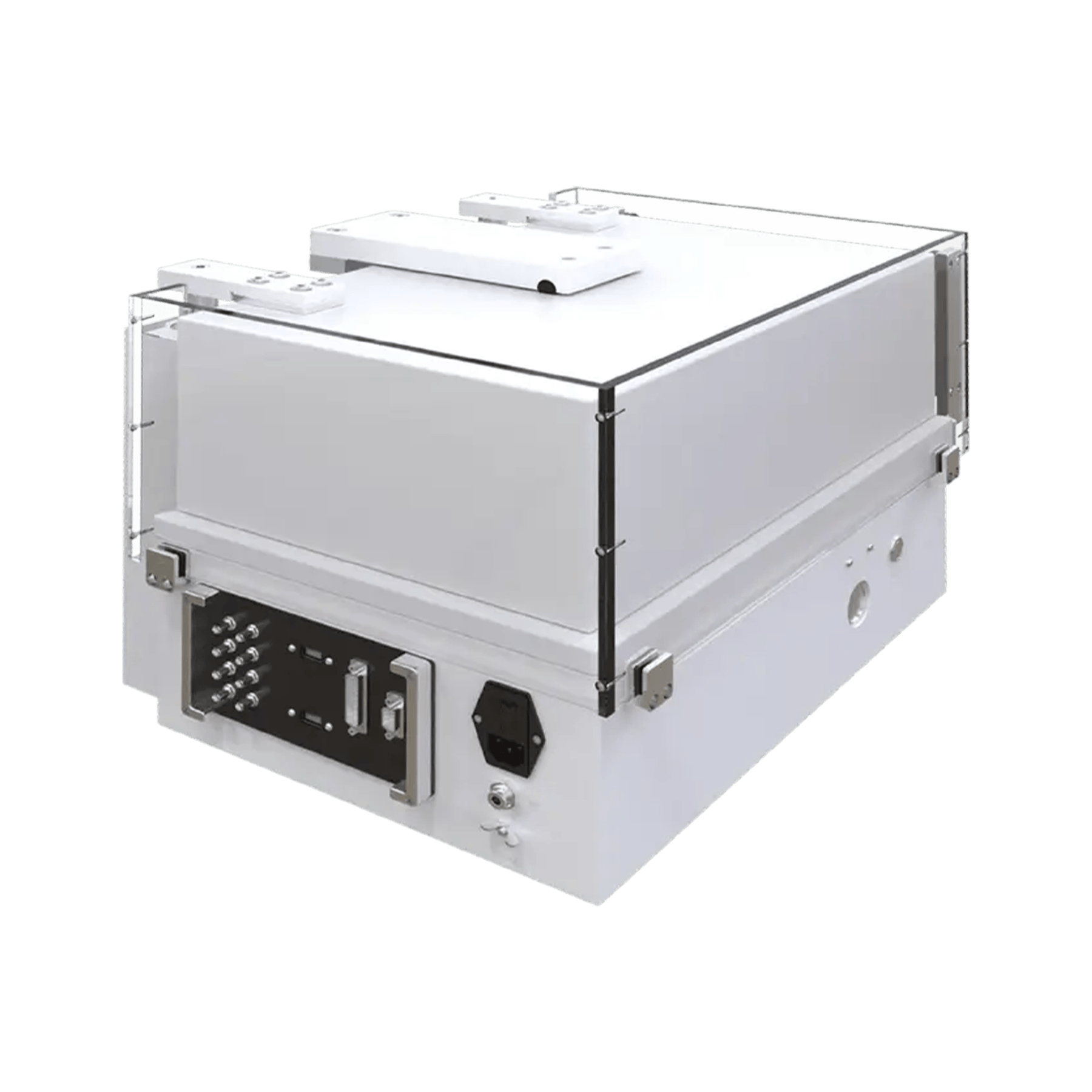

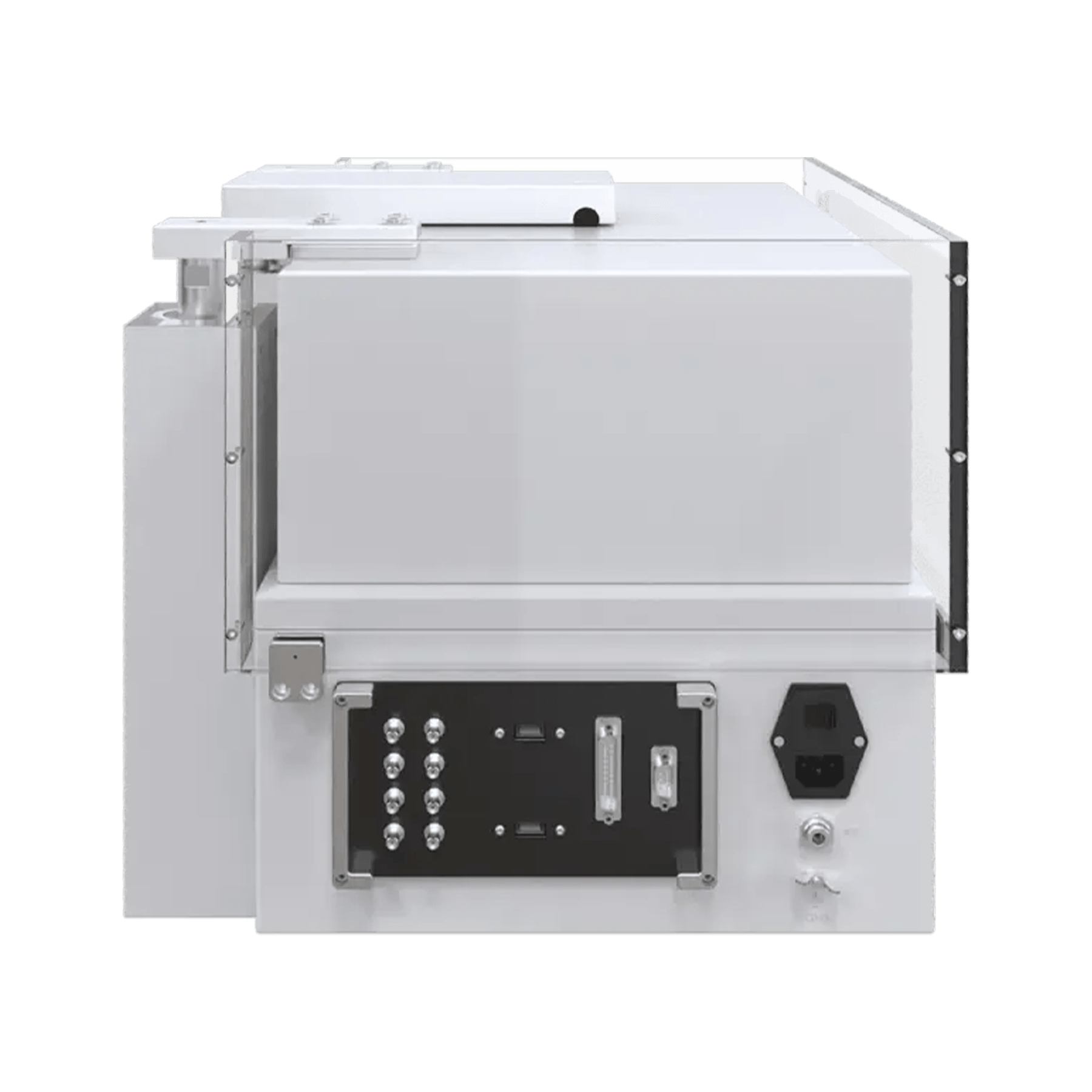

CON-S-270 is a pneumatic operation shield box designed for conductive test.
It is optimized to perform between 0.5 GHz to 6 GHz with excellent shielding performance for mass production application. CON-S-270 can be customized with a variety of I/O options to meet testing requirements.
Overview
Outer Dimension
556×432×391 mm
Opening Dimension
556×432×565 mm
Weight
Approx. 46 kg
No.1
Operation frequency from 500MHz to 6GHz
No.2
500MHz to 6GHz RF Isolation > 70dB
No.3
Designed for PCBA RF conductive test
No.4
Pairing with RF fixture which can support multi DUT test
No.5
Mass production solution for GPS, Cellular, Bluetooth, and WIFI..etc
