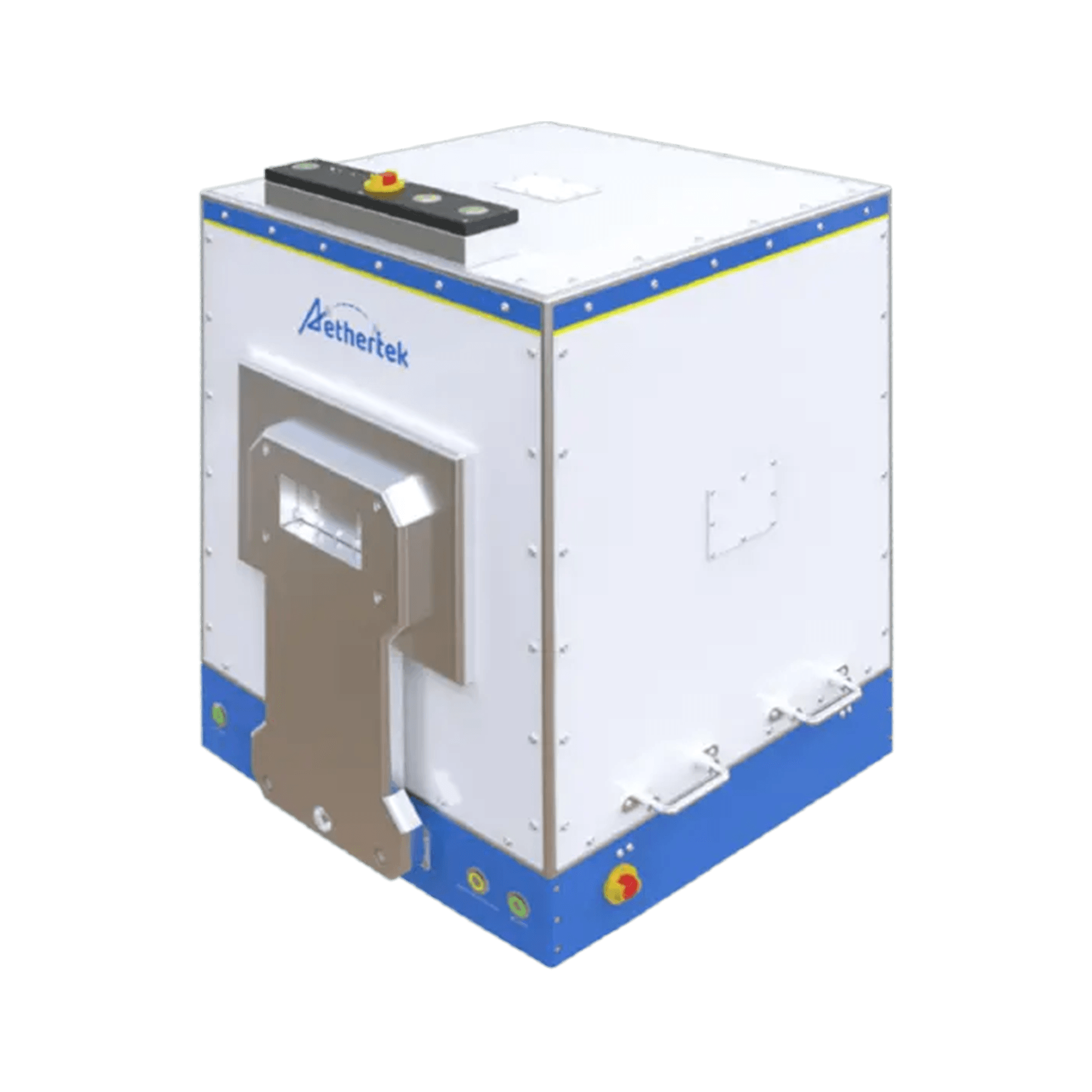

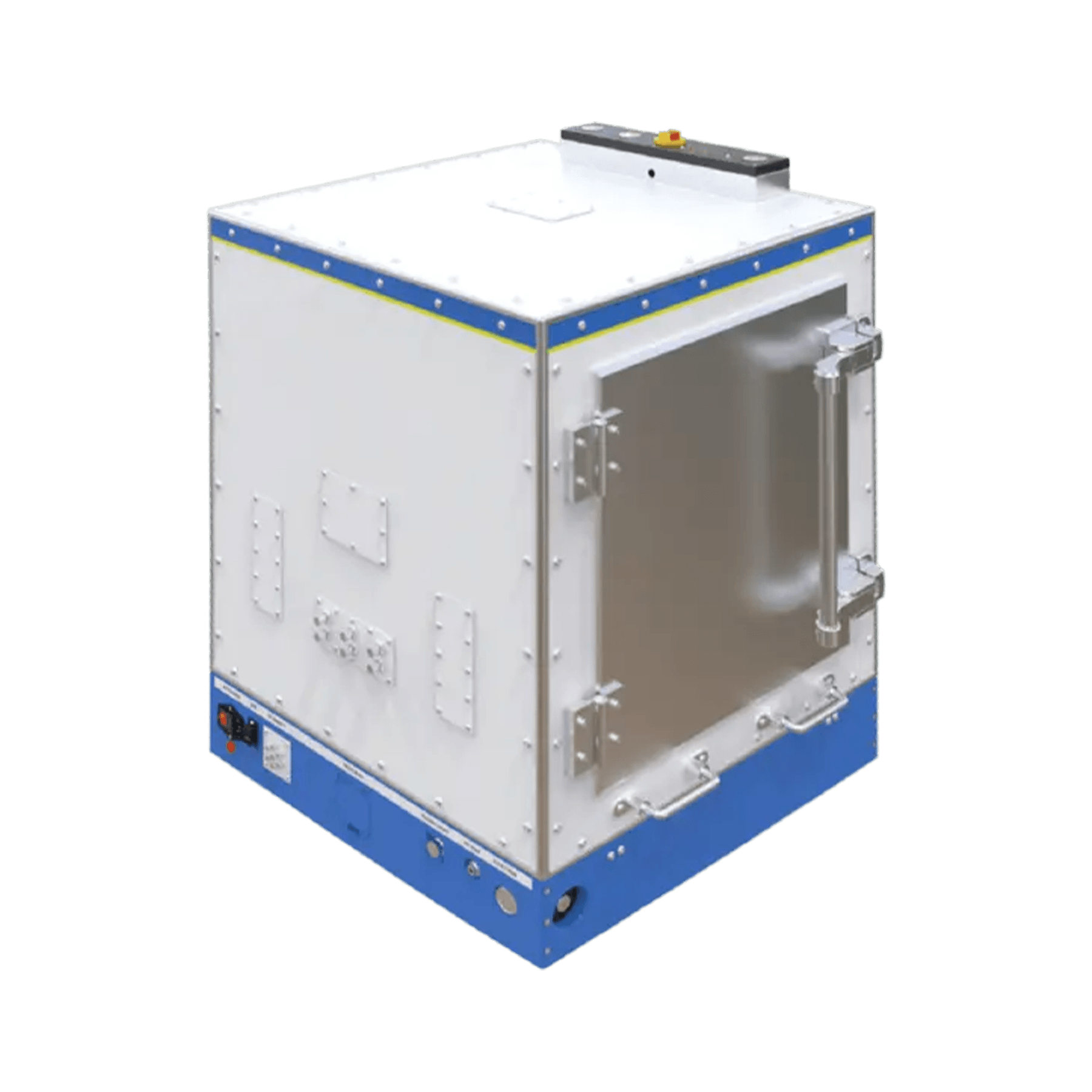

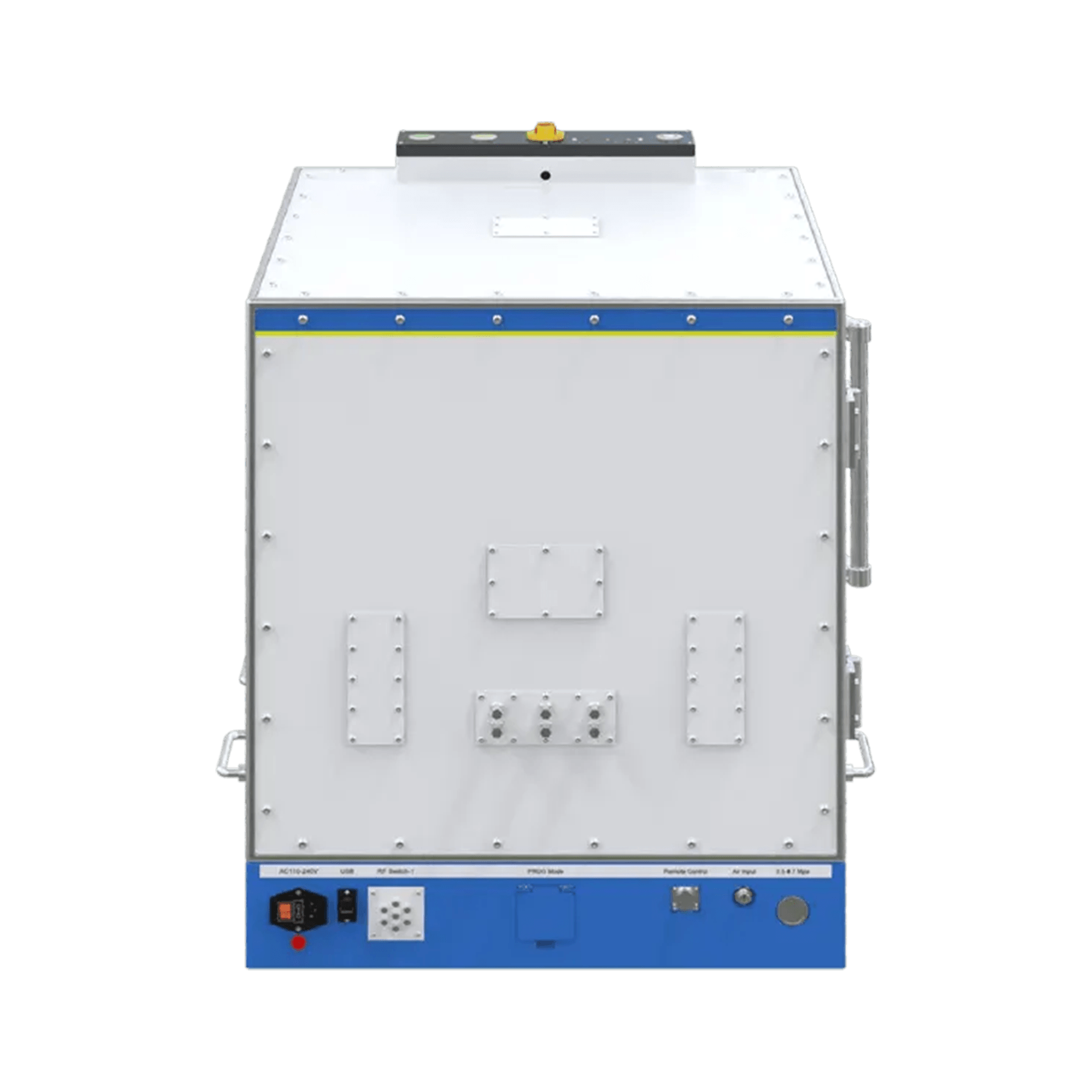

OTA-550
5G mmWave Pneumatic shield box.
OTA-550 is a medium-scale pneumatic operation shield box optimized for wireless testing from 0.5 GHz to 40 GHz. It offers excellent shielding performance for small to medium-sized devices like smartphones, tablets, and laptops. Customizable with various I/O options, it can be tailored to meet specific device requirements.
Overview
Outer Dimension
738×707×745 mm
Inner Dimension
550×550×550 mm
Operation Door Dimension
350×200 mm
Weight
Approx. 50 kg
No.1
Designed for sub-6 & mmWave testing
No.2
Reliable RF shielding from 0.5 GHz to 40 GHz
No.3
Optimized for mass production testing requirements
No.4
Pneumatic operation door for both automation & manual production line setup
No.5
Customizable I/O interface
