Shield BoxOTA

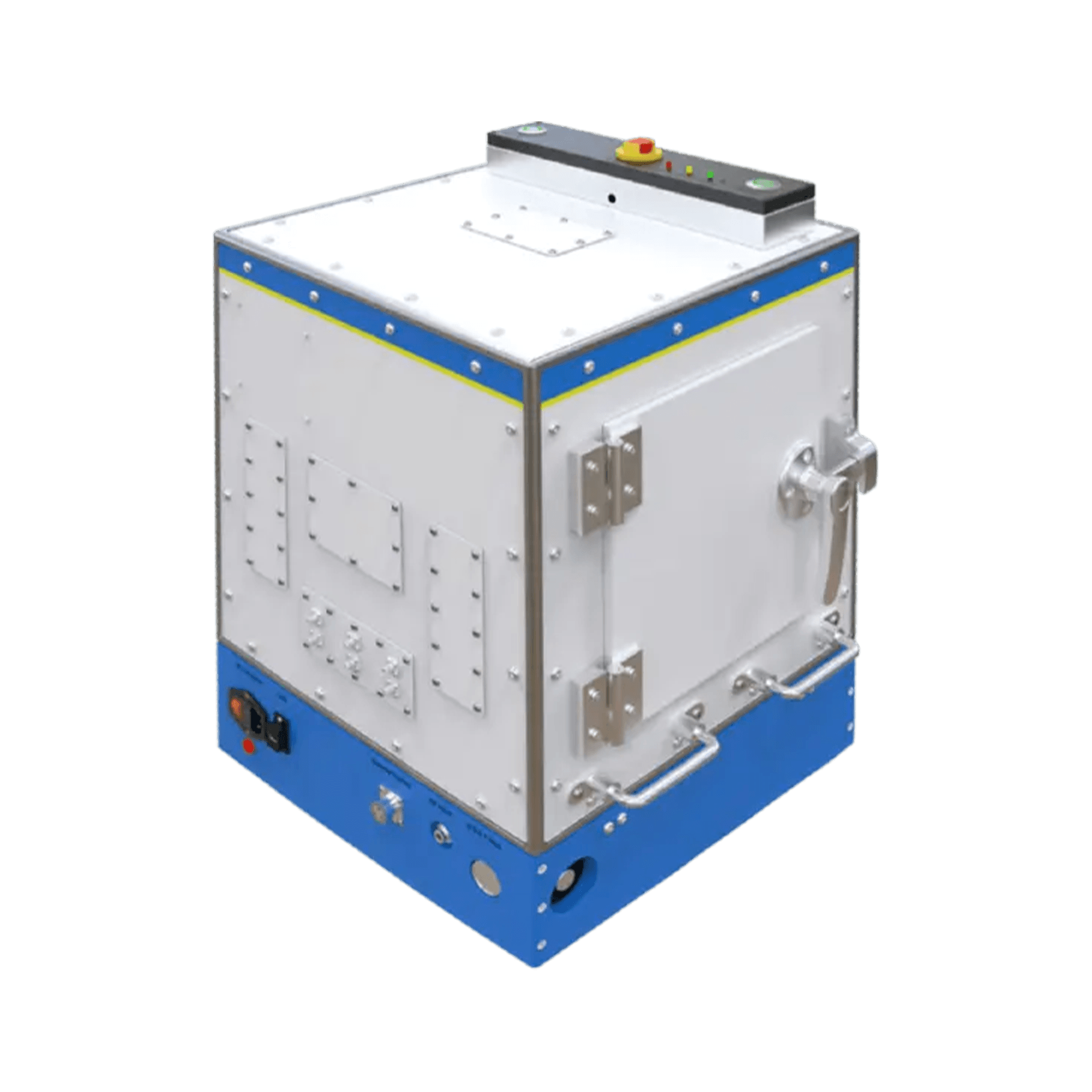

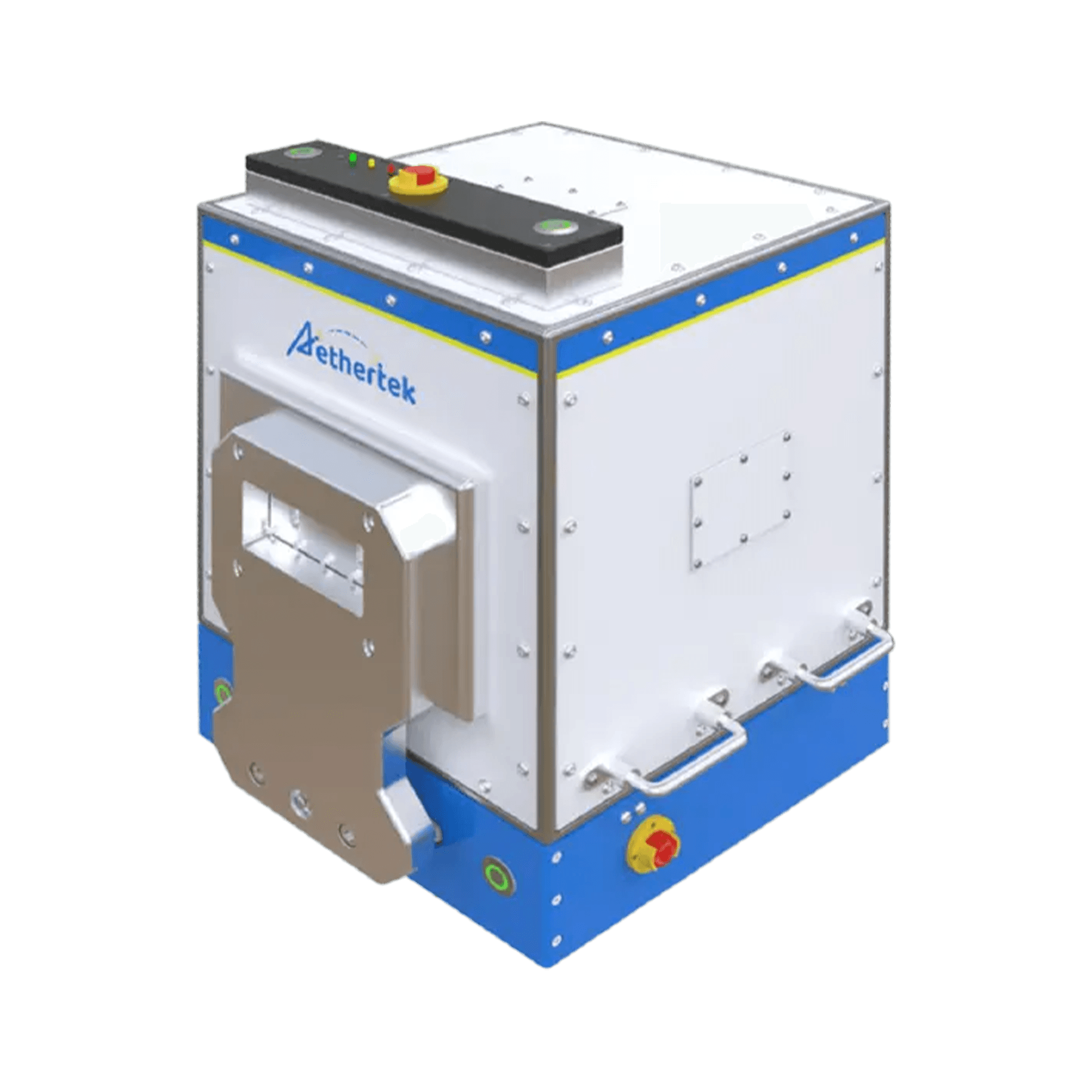

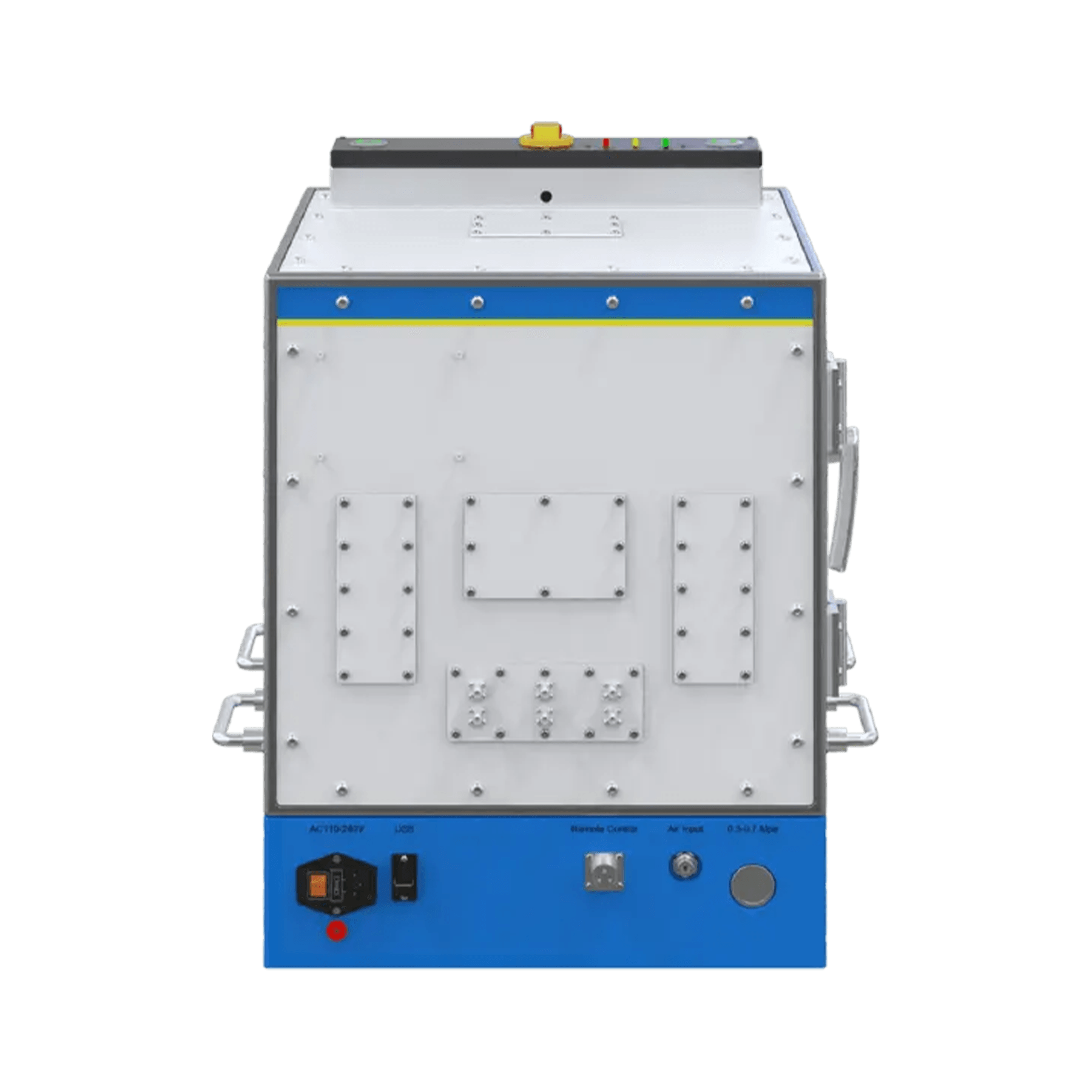

OTA-350
5G mmWave Pneumatic shield box.
OTA-350 is a large scale pneumatic operation shield box optimized to perform 5G tests between 0.5 GHz to 40 GHz with excellent shielding performance on small to medium sized devices such as smart phones, tablets and laptops.
OTA-350 can be customized with a variety of I/O options to meet device requirements.
Overview
Outer Dimension
538×490×550 mm
Inner Dimension
350×350×350 mm
Operation Door Dimension
250×200 mm
Weight
Approx. 45 kg
No.1
Designed for sub-6 & mmWave testing
No.2
Reliable RF shielding from 0.5 GHz to 40 GHz
N0.3
Optimized for mass production testing requirements
No.4
Pneumatic operation door for both automation & manual production line setup
No.5
Customizable I/O interface
Download Data Sheet
