FR2 O-RU
ALBIZIA
ALBIZIA is an open platform designed specifically for FR2 5G deployment applications.
The mmWave FR2 platform is a versatile, high-performance radio unit designed to accelerate 5G deployment across multiple scenarios. With a modular architecture and open interfaces, it enables flexible integration for commercial networks, enterprise private 5G, and research environments.
Overview
Radio Access Technology
3GPP 5G NR Rel.17, O-RAN
Disaggregation Option
Option 7.2 Category A
Metanoia Chipset
MT2824 *1, MT3812 *1
Duplex
TDD
Frequency Band
n257, n258, n261
Data stream for DL and UL
2 Layers
Carrier Aggregation
1CC200MHz, 2CC200MHz, 1CC400MHz, 4CC100MHz
Modulation
DL 256QAM, UL 64QAM
Sub-Carrier Spacing (SCS)
120 kHz
uRLLC
Mini-Slot
Throughput (Theory)
DL < 2.2 Gbps (7DS2U), UL < 460 Mbps (7DS2U)
Number of users per TTI
Typical 8 users
Memory & Storage
4GB LPDDR4, 4 GB eMMC, NOR Flash 256Mbit
Ethernet Port
25 Gbps SFP28 *1
Timing Synchronization
PTP IEEE1588v2, Sync-E, GNSS

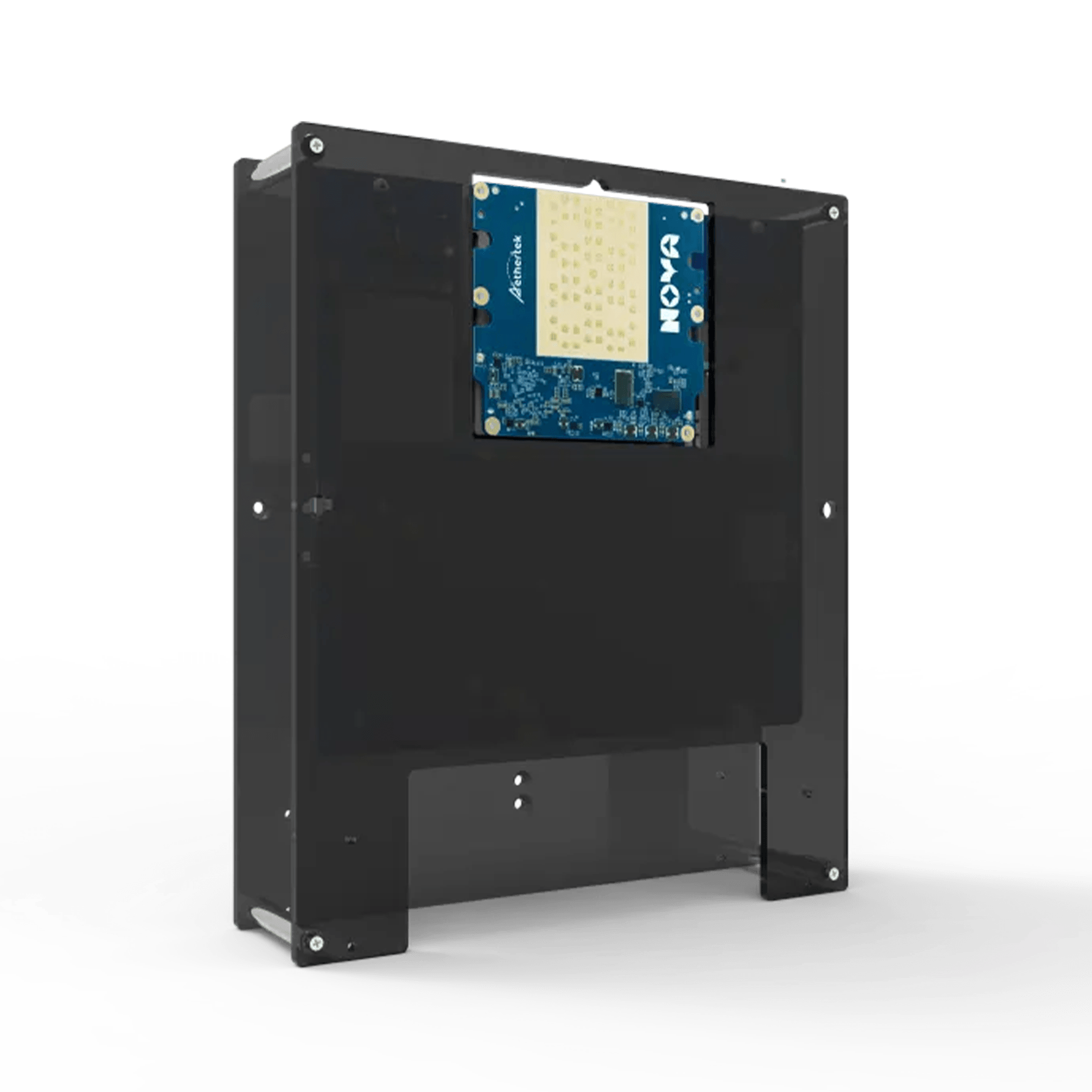

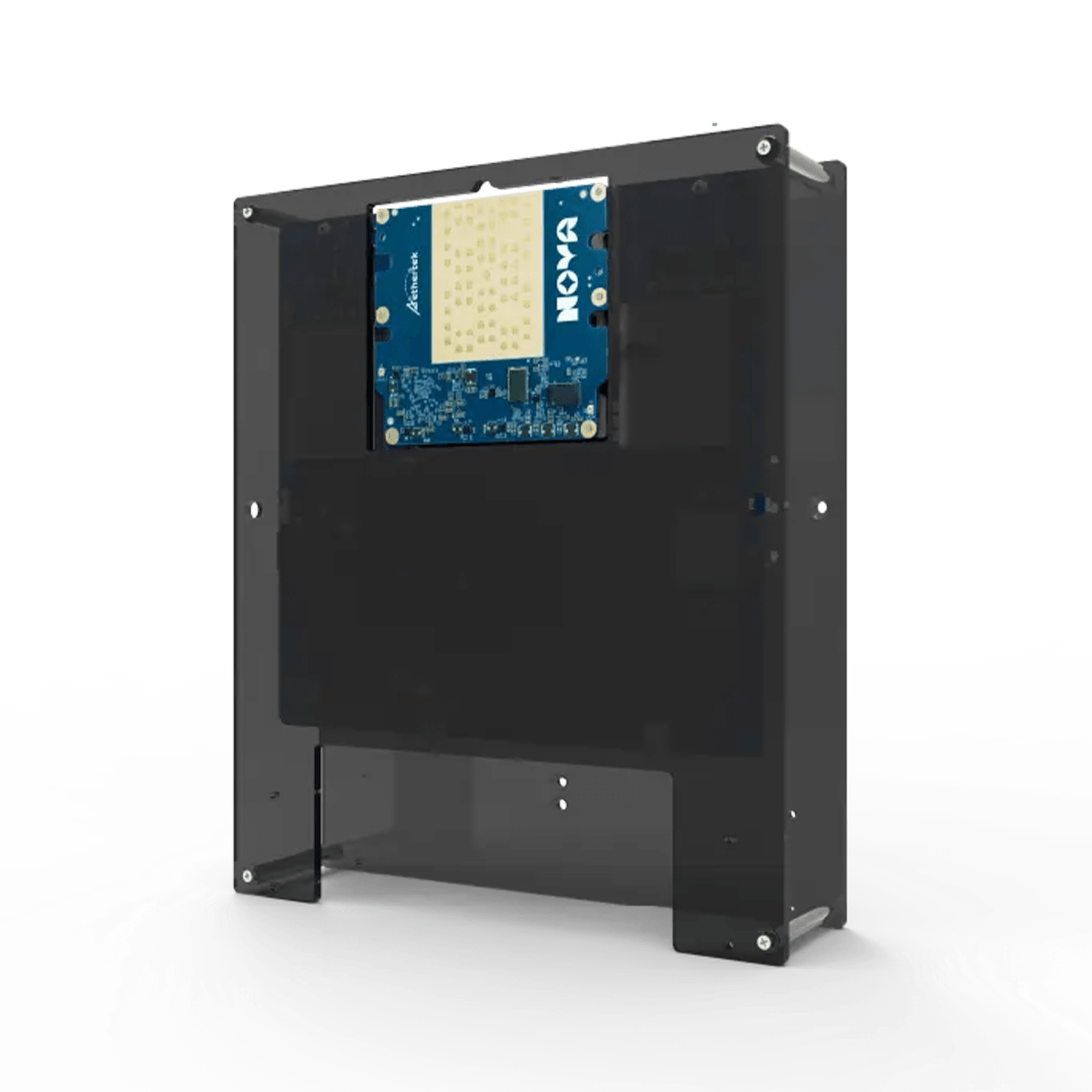

Antenna Module
Aethertek NOVA
Max. EIRP
50dBm
Antenna elements
64
Number of beams
Two beams
Beam Scan angle
Azimuth ±60°, Elevation ±20°
